• 4-Dr Intelligent Access

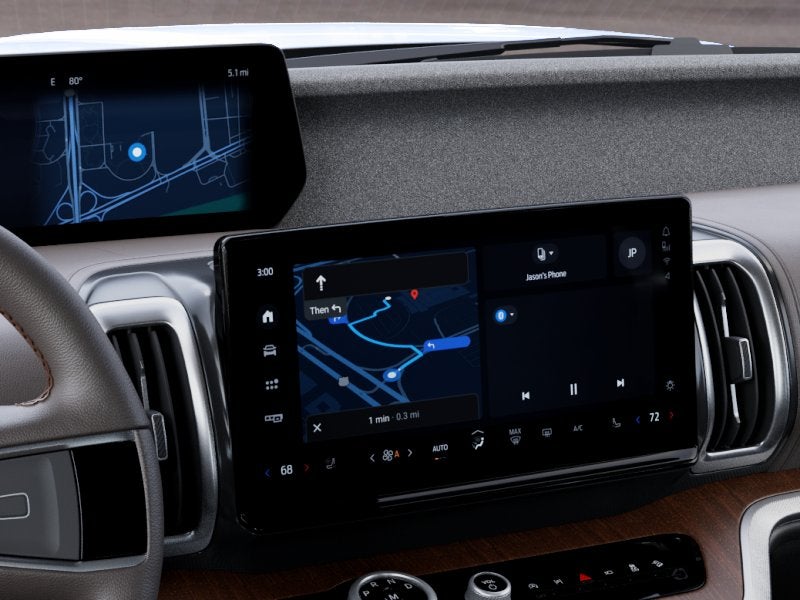

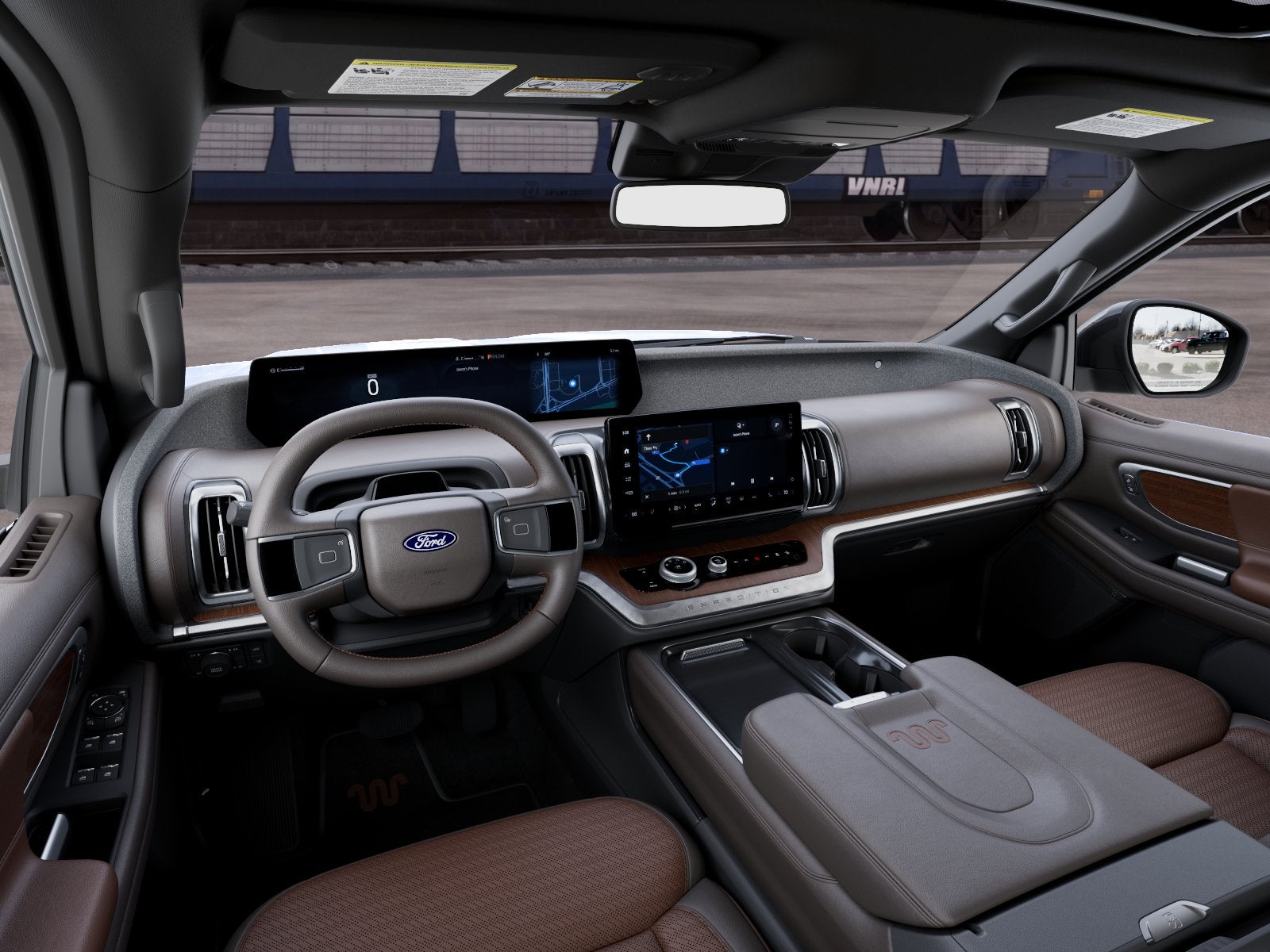

• 13.2" Center Display

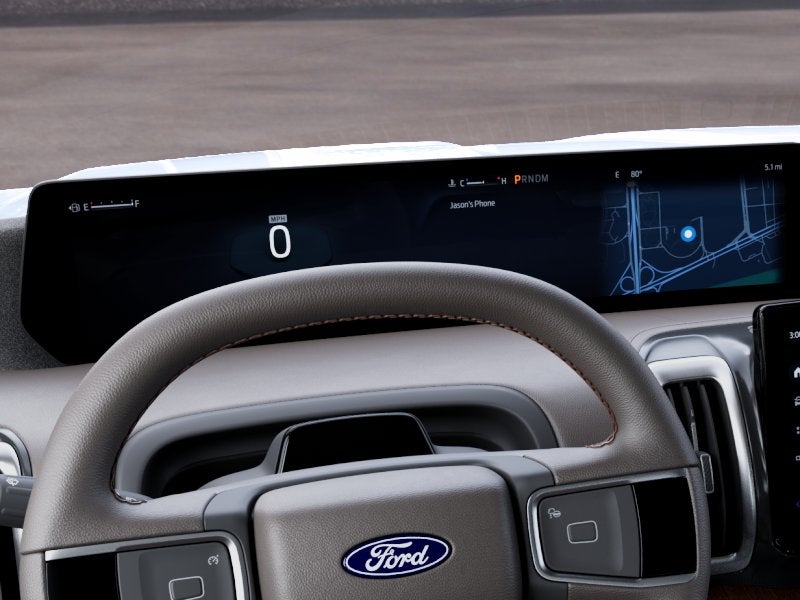

• 24" Panoramic Display
• B&O Unleashed, 22 Spkr
• Driver-Facing Camera
• Ford App
• Front/Rear Ind Suspension
• Hill Descent Control
• Hill Start Assist
• Intelligent 4Wd System
• Pro Power Onboard - 400W
• Remote Start W/ Ford App
• Terrain Management System W/ Selectable Drive Modes
• Two-Speed Transfer Case

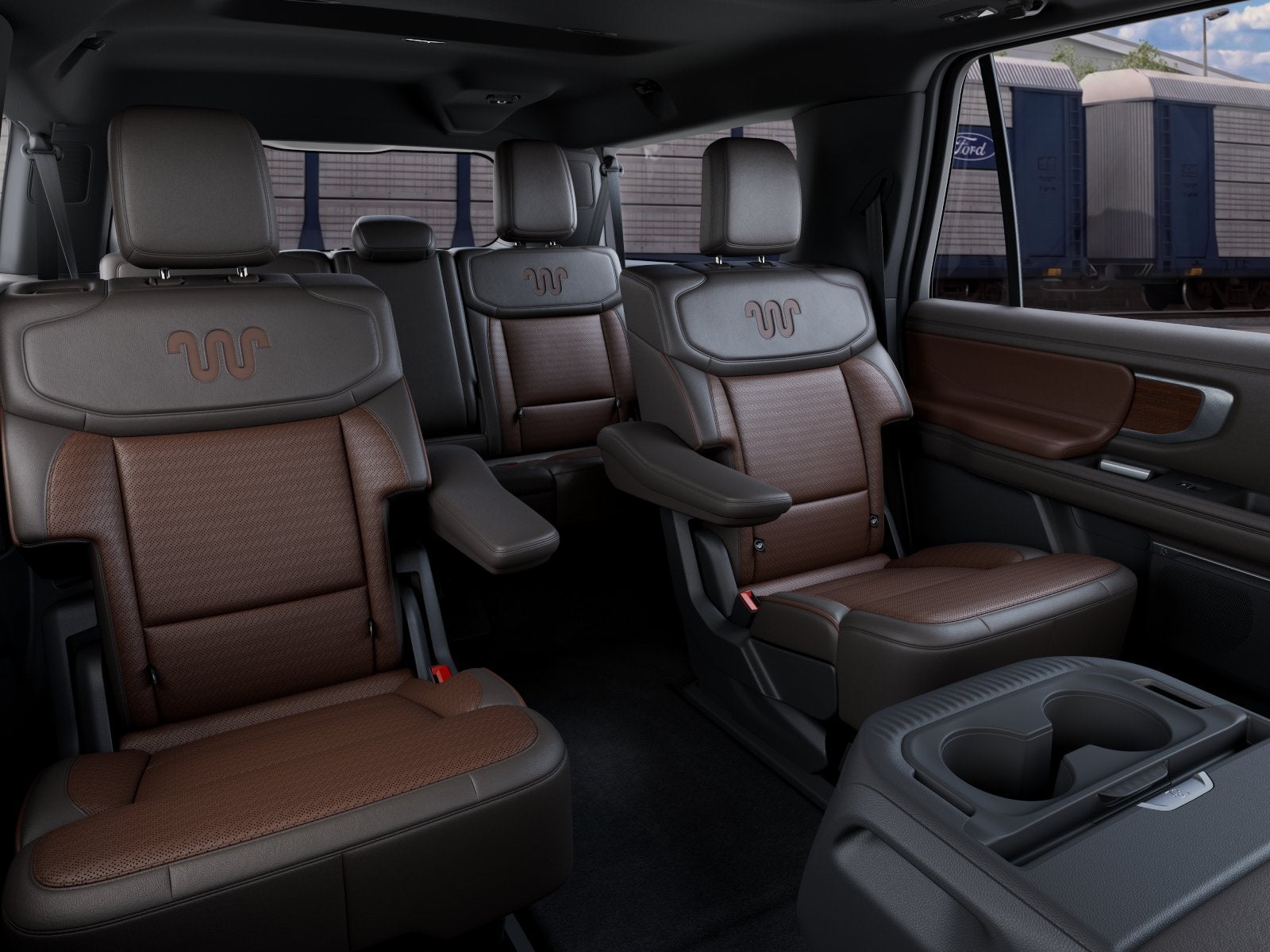

• 2Nd Row Htd/Pwr Folding Tip-And-Slide Seats
• 3Rd Row 40/20/40 Flex Seat W/ Powerfold
• Ambient Lighting

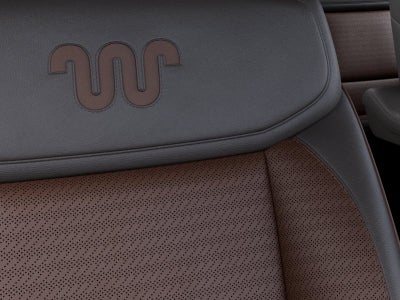

• Del Rio Leather:Door Trim, Wrap Str Whl, Ctr Console

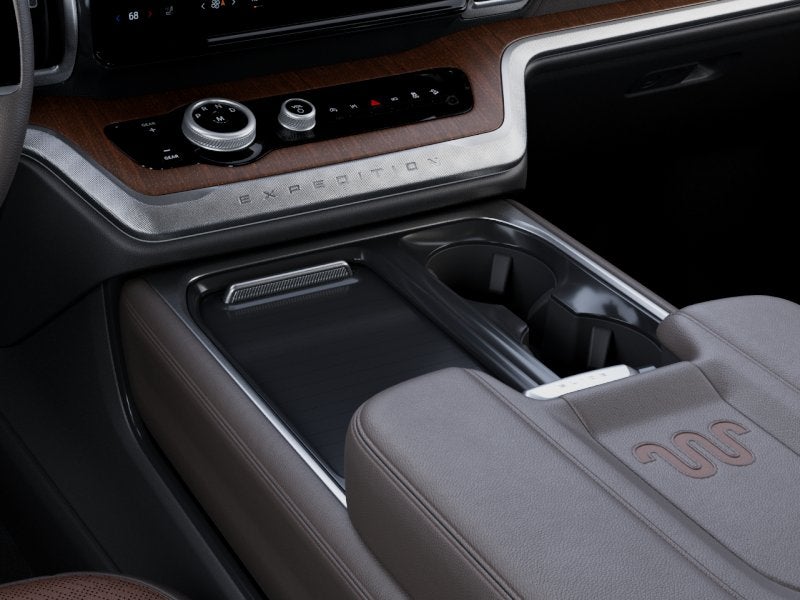

• Flex Powered Console

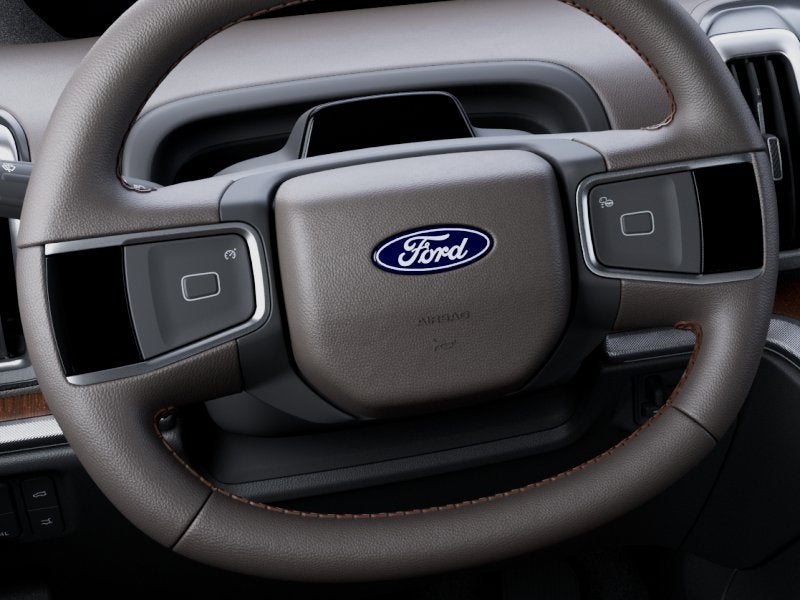

• Htd Str Whl W/Cruise&Audio
• Htd/Ventilated Frt Seats
• Memory Driver Seat
• Pedals-Pwr Adj W/Memory
• Pwr Tilt/Tel Str Col W/Mem
• Tri-Zone Auto Climate Ctrl

• Airbags - Dual Stage Front
• Airbags - Safety Canopy
• Airbags - Side Impact Frnt
• Indiv Tire Press Monit Sys
• Latch Child Safety System
• Perimeter Alarm
• Personal Safety System
• Rear Occupant Alert
• Sos Post-Crash Alert Sys

King Ranch® (400A)

Family Travel Package

Heavy-Duty Trailer Tow

Ford Security Package (1-year included)

Trailer Tow Prep Pack

Driver's Package

BlueCruise Equipped (1 Year + 90-Day Plan)

Ford Connectivity Package (1-year Included)*

Ford Connectivity Package (One-time purchase – 7 years)*

Ford Co-Pilot360® Active 2.0

• Mileage
• Fuel Economy Est-Combined (MPG): 18 (Est)
• EPA Fuel Economy Est - City (MPG): 15 (Est)
• EPA Fuel Economy Est - Hwy (MPG): 22 (Est)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 675
• Cold Cranking Amps @ 0° F (2nd): 675
• Weight Information
• Base Curb Weight (lbs): 5794
• Gross Axle Wt Rating - Front (lbs): 3550
• Gross Axle Wt Rating - Rear (lbs): 4540
• Curb Weight - Front (lbs): 2884
• Curb Weight - Rear (lbs): 2910
• Gross Vehicle Weight Rating Cap (lbs): 7750
• Gross Combined Wt Rating (lbs): 15600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Maximum Trailering Capacity (lbs): 9000
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Independent
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8
• Rear Brake Rotor Diam x Thickness (in): 13.2
• Tires
• Front Tire Size: P275/50HR22
• Rear Tire Size: P275/50HR22
• Spare Tire Size: Full-Size

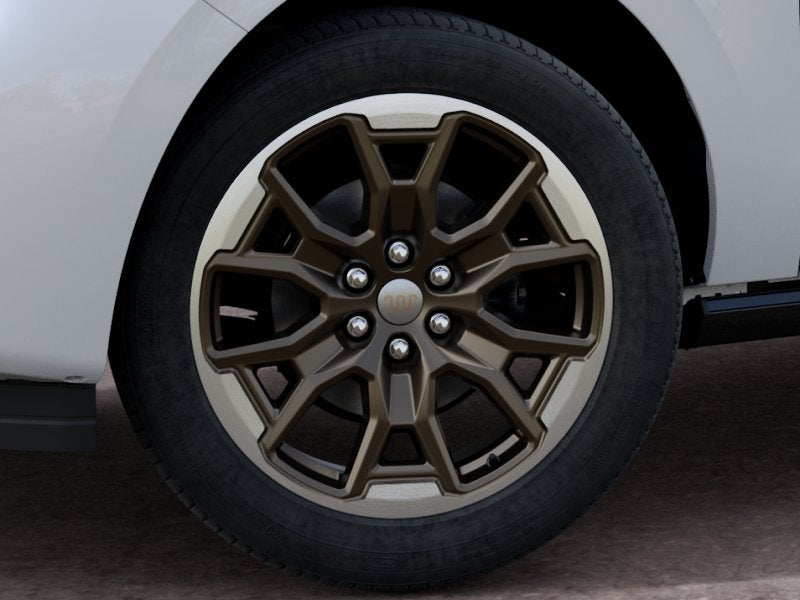

• Wheels
• Front Wheel Size (in): 22 X 9
• Rear Wheel Size (in): 22 X 9
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 43.3
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 27.8
• Exterior Dimensions
• Wheelbase (in): 131.5
• Length, Overall (in): 221.7
• Width, Max w/o mirrors (in): 81.5
• Height, Overall (in): 77.9
• Track Width, Front (in): 68.1
• Track Width, Rear (in): 67.8
• Min Ground Clearance (in): 8.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 102.2
• Cargo Area Length @ Floor to Seat 2 (in): 71.7
• Cargo Area Length @ Floor to Seat 3 (in): 33.2
• Cargo Area Width @ Beltline (in): 63.4
• Cargo Box Width @ Wheelhousings (in): 51.4
• Cargo Box (Area) Height (in): 37.7
• Cargo Volume to Seat 1 (ft³): 123.1
• Cargo Volume to Seat 2 (ft³): 75.4
• Cargo Volume to Seat 3 (ft³): 36.1
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 64.9
• Front Hip Room (in): 62.3
• Second Head Room (in): 40
• Second Leg Room (in): 41.1
• Second Shoulder Room (in): 64.8
• Second Hip Room (in): 62.3
• Third Head Room (in): 37.4
• Third Leg Room (in): 36.5
• Third Shoulder Room (in): 64.2
• Third Hip Room (in): 51.4
• Summary

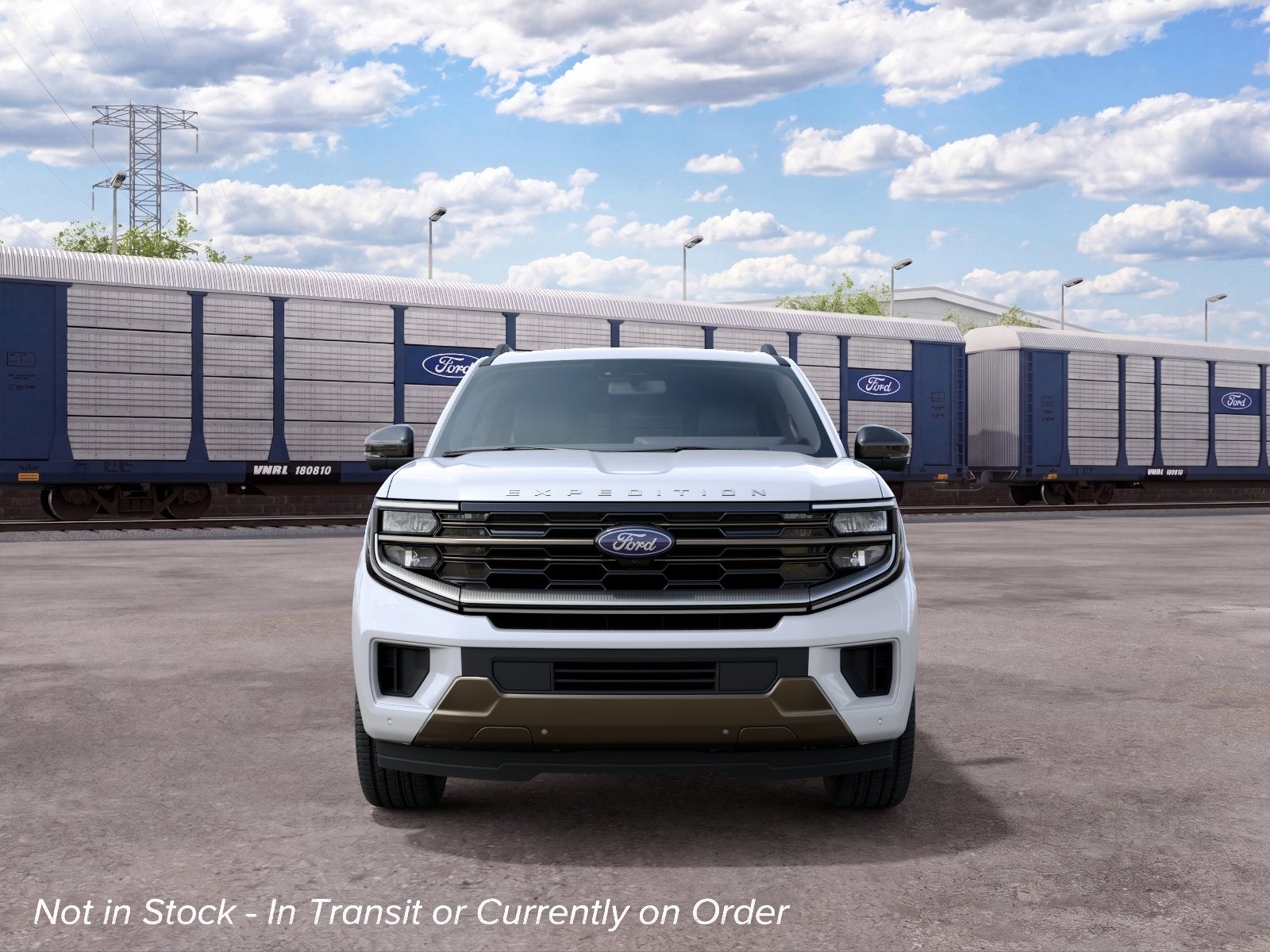

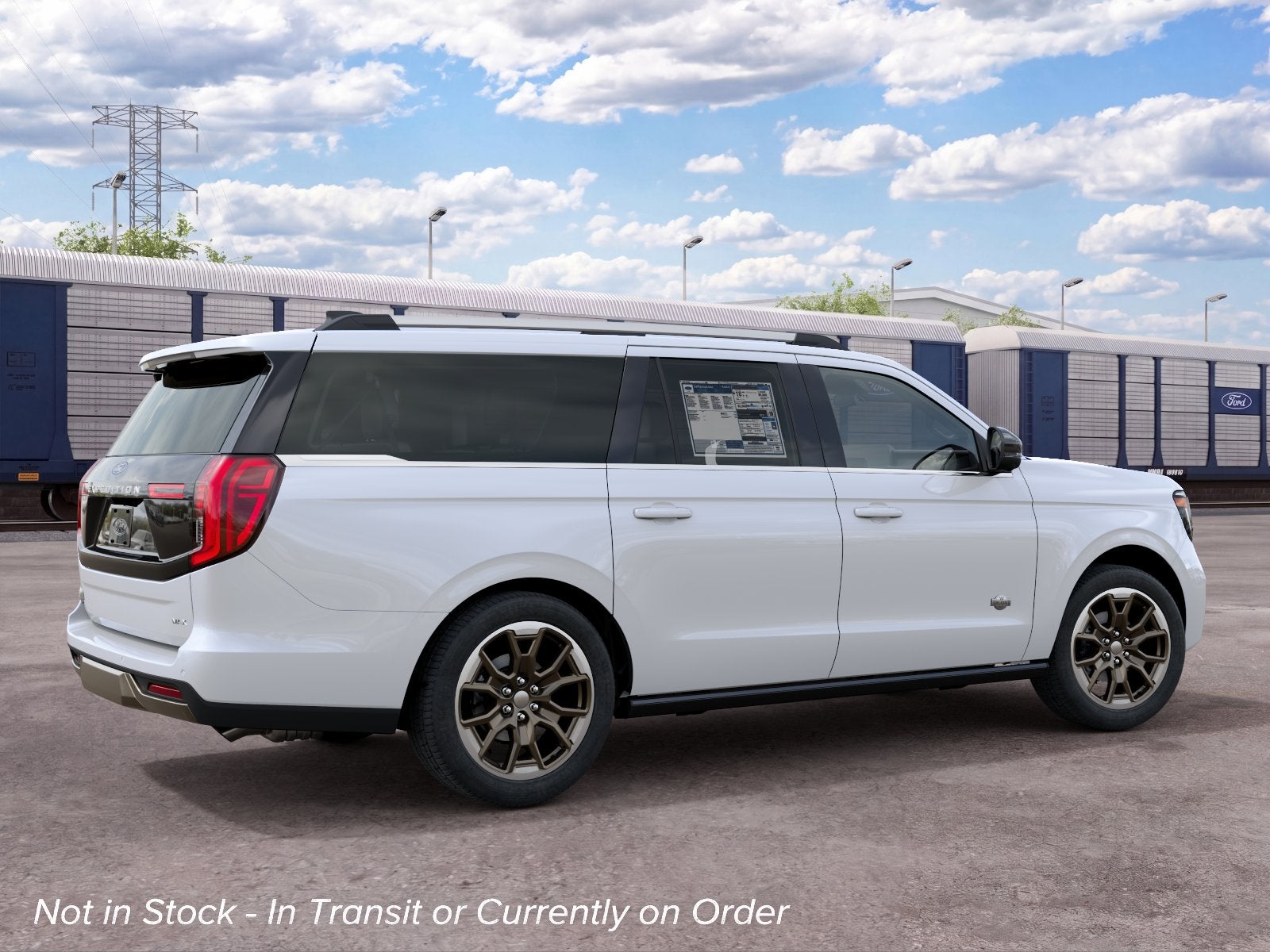

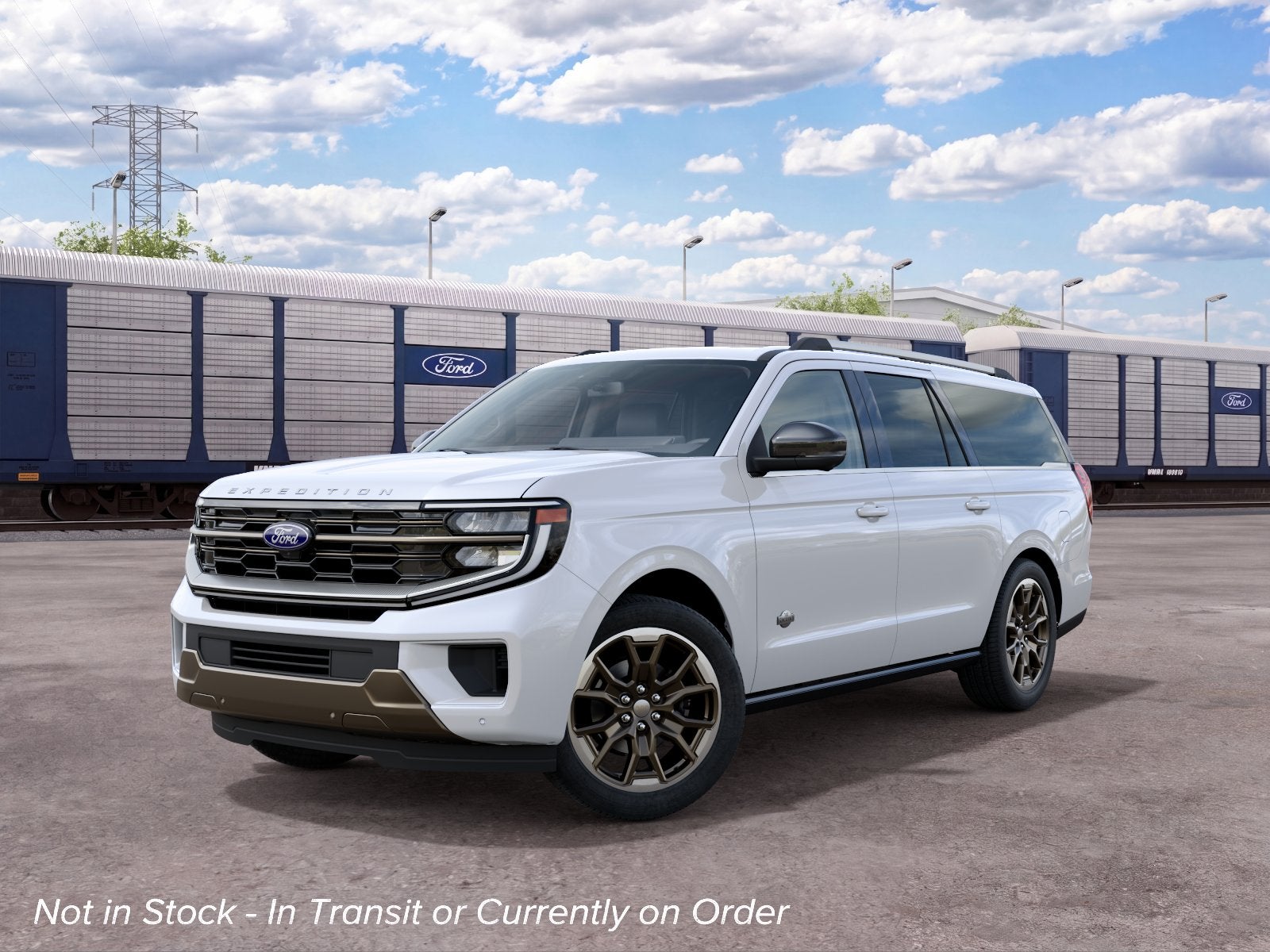

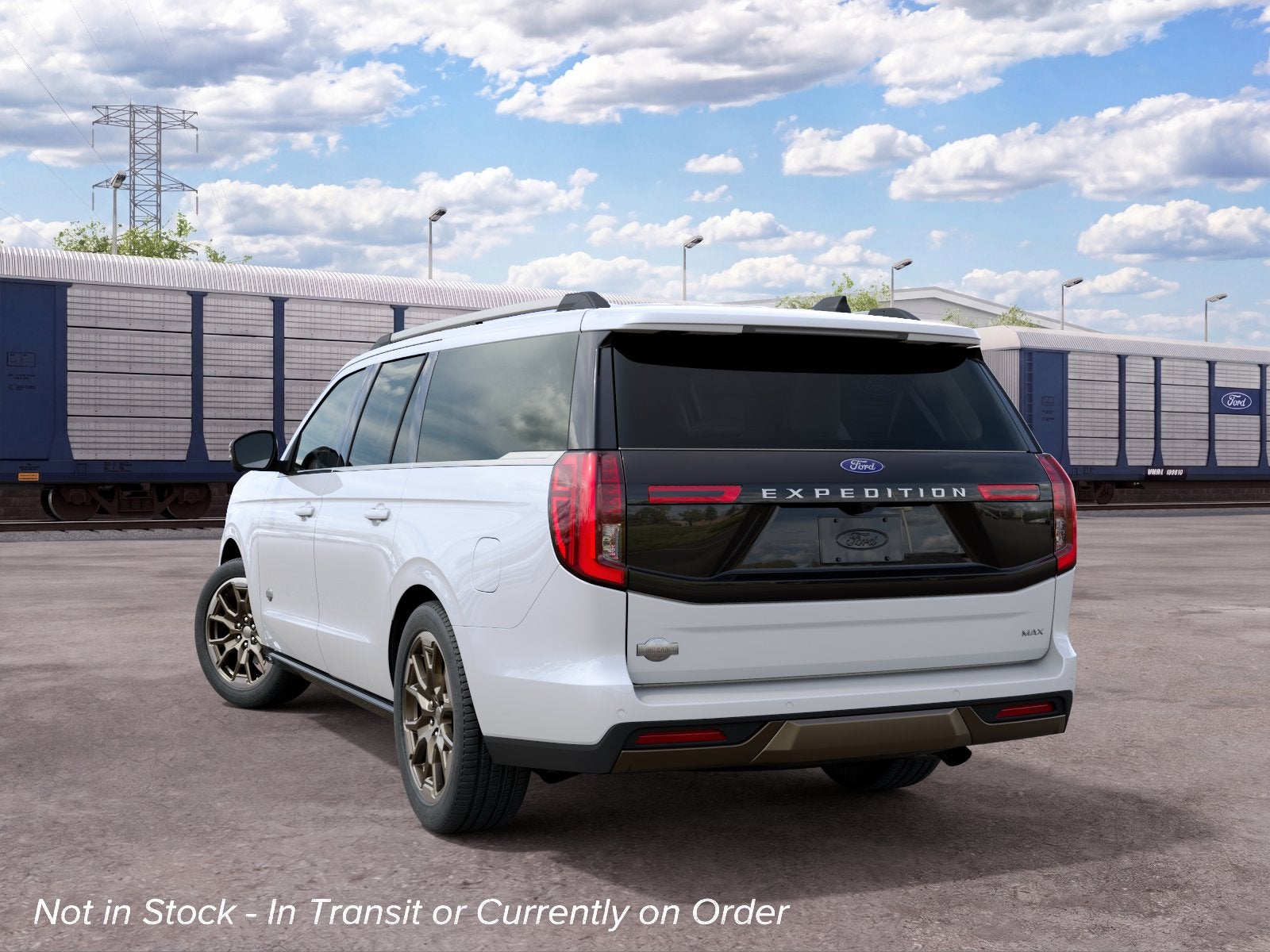

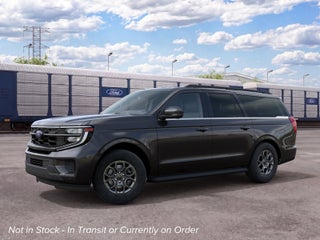

• Vehicle Name: Ford Expedition Max
• Body Style: Sport Utility
• Body Code: S
• Emissions
• EPA Greenhouse Gas Score: 3.0 (Est)
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.3 (Est)
